Quick Latches are used as a means to connect equipment together without a person standing under a suspended load. The rig up would consist of installing the pressure control equipment onto the wellhead and then installing the injector head. The injector frame would have the Stripper Packer mounted into the frame with a quick latch profile pointing down. The quick latch mechanism can be latched remotely without operation personnel working to help connect the last connection.

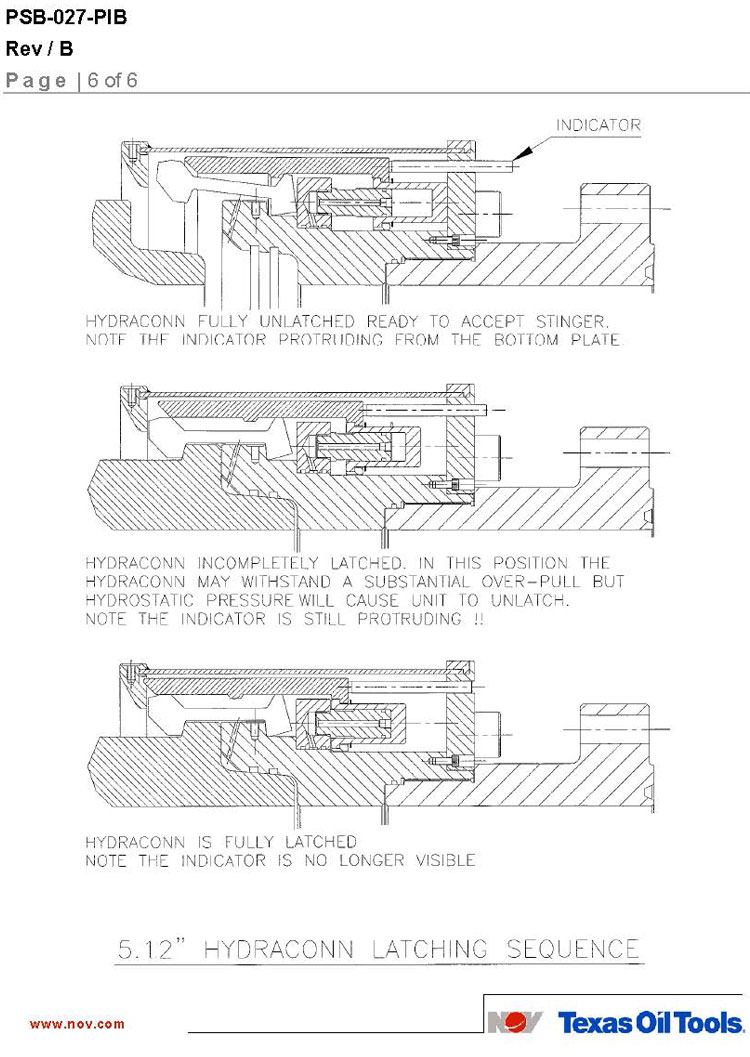

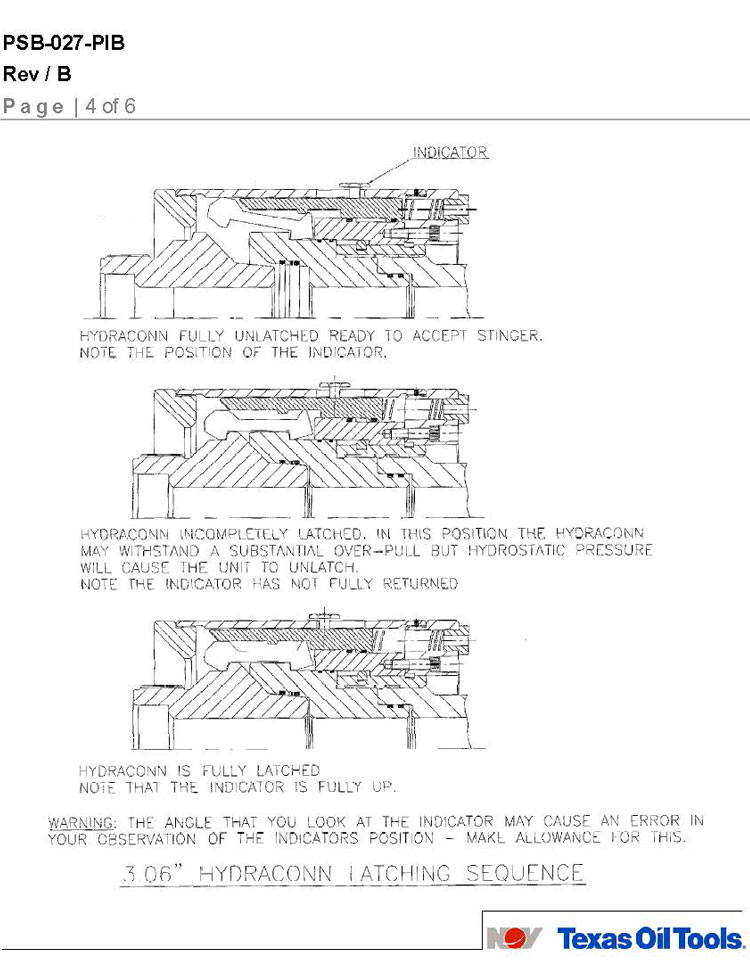

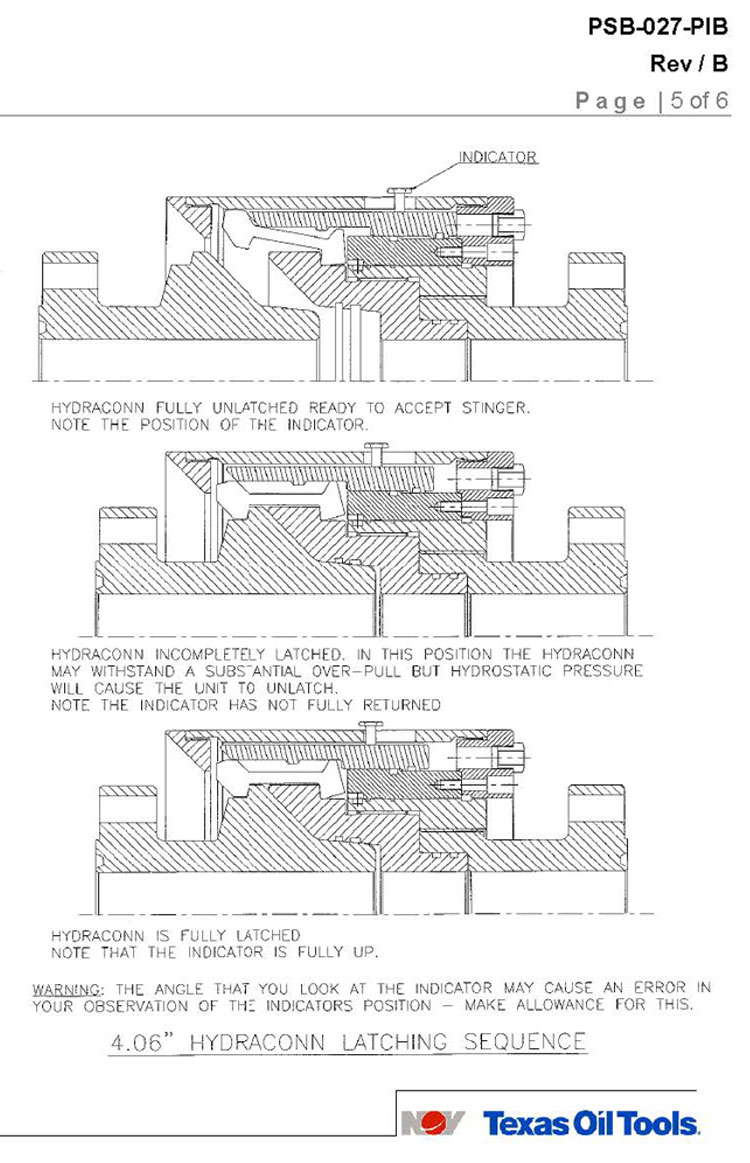

The TOT Hydraconn union is a rugged connector designed to permit a coil tubing injector assembly and the stripper packer to be stabbed and latched onto the top of coil tubing BOP’s, and have a funnel to guide the stabbing operation. It has a tapered seal bore which allows the connector to mate even when the injector is suspended at a slight angle. The Hydraconn is operated by a single hydraulic line which opens a series of latching dogs on the BOP mounted connector half to accept the stinger sub mounted on the bottom of the stripper packer. Once the two parts are stabbed together, the hydraulic pressure is vented and the spring loaded system forces the latch dogs closed, locking the Hydraconn together.
快速连接器是用来作为一种手段用于连接设备，解决了以往需要有人站在一个调载器下。该装置包括安装在井口上的压力控制装置，然后安装喷射器头。该喷油器框架将有一个防喷盒配合一个剖面向下的快速连接器安装在框架上�？焖倭悠骺梢栽冻趟娑扌璨僮魅嗽卑镏斯ち由弦桓隽�。
TOT hydraconn 由壬是一个坚固的连接器的设计允许连续油管注入头总成和防喷盒串在一起，并锁存到连续油管防喷器的顶部，有一个漏斗引导穿刺的操作。当注入头停止在一个很小的角度时，它有一个锥形密封孔将与连接器相连。这个hydraconn是由一个液压线操作，并在防喷器上打开一系列的锁孔，防喷器安装的连接器一半用于接受安装在防喷盒底部的插入短节。一旦将这2个部分被插入连接在一起，液压就被贯通，然后管线运载系统会将锁孔关闭，将hydraconn锁一起。
